New Generation Extra Clear Rear PV Glass

Ultra clear solar back glass is the back side glass for bifacial solar modules. Bifacial solar modules which made up with two pieces of glass, solar cells and encapsulation materials, and the cells are connected in series or parallel to the lead end. There are several advantages of bifacial solar modules such as power generation on the back, long life cycle, high fire resistance, weather resistance, wear resistance and corrosion resistance, and glass is an inorganic environmentally friendly material. With the continuous advancement of technology, bifacial solar modules are becoming more and more popular, and have become an important development direction of the module industry.

The new generation ultra clear back solar glass is developed by Kibing Solar, having independent intellectual property rights, and with patent protection. With stable quality, it has passed various tests and certifications, and has been supplied to major module manufacturers continuously.
Specifications
Thickness range
2.0mm±0.15mm;3.2mm±0.2mm
Thickness difference
2.0mm,≤0.2mm;3.2mm,≤0.25mm
Width range
3300-4880mm (easily compatible with 182, 210 and other large modules)
The industry-leading laser drilling process is used for precise glass drilling and to avoid edge defects such as burrs At the same time, it has both white silk screen printing and black silk screen printing technology, the glaze layer is flat and the position is precise, which can meet the various performance requirements of customers for the glaze.
Introduction
Application
Crystalline silicon photovoltaic modules, thin film photovoltaic modules, photovoltaic building-integrated solar cell modules, and other types of photovoltaic application products.

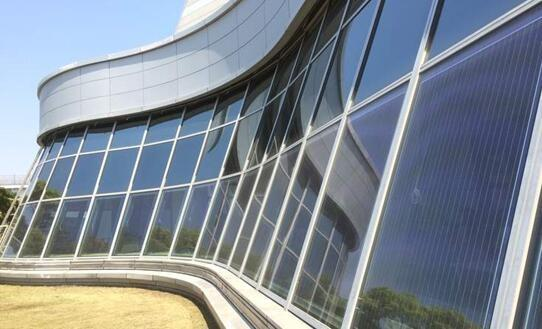

Photovoltaic building
Crystalline silicon photovoltaic
Thin film photovoltaic module
Main Parameters
Main Parameters
Hole drillingDiameter 3.0≤d≤30mm,tolerance ±1mm
Raw glass sheet transmittanceNON ceramic printing area ≥91.5%
The basic performance of ceramic printingHardness≥4H
Adhesion≤1级
ReflectivityReflectance of printing≥75%(wave length 380-1100nm)
Thickness15-35μm
Adhesion to EVA/POE≥60N/cm
